Frame specs
-
29 front, 27.5 rear

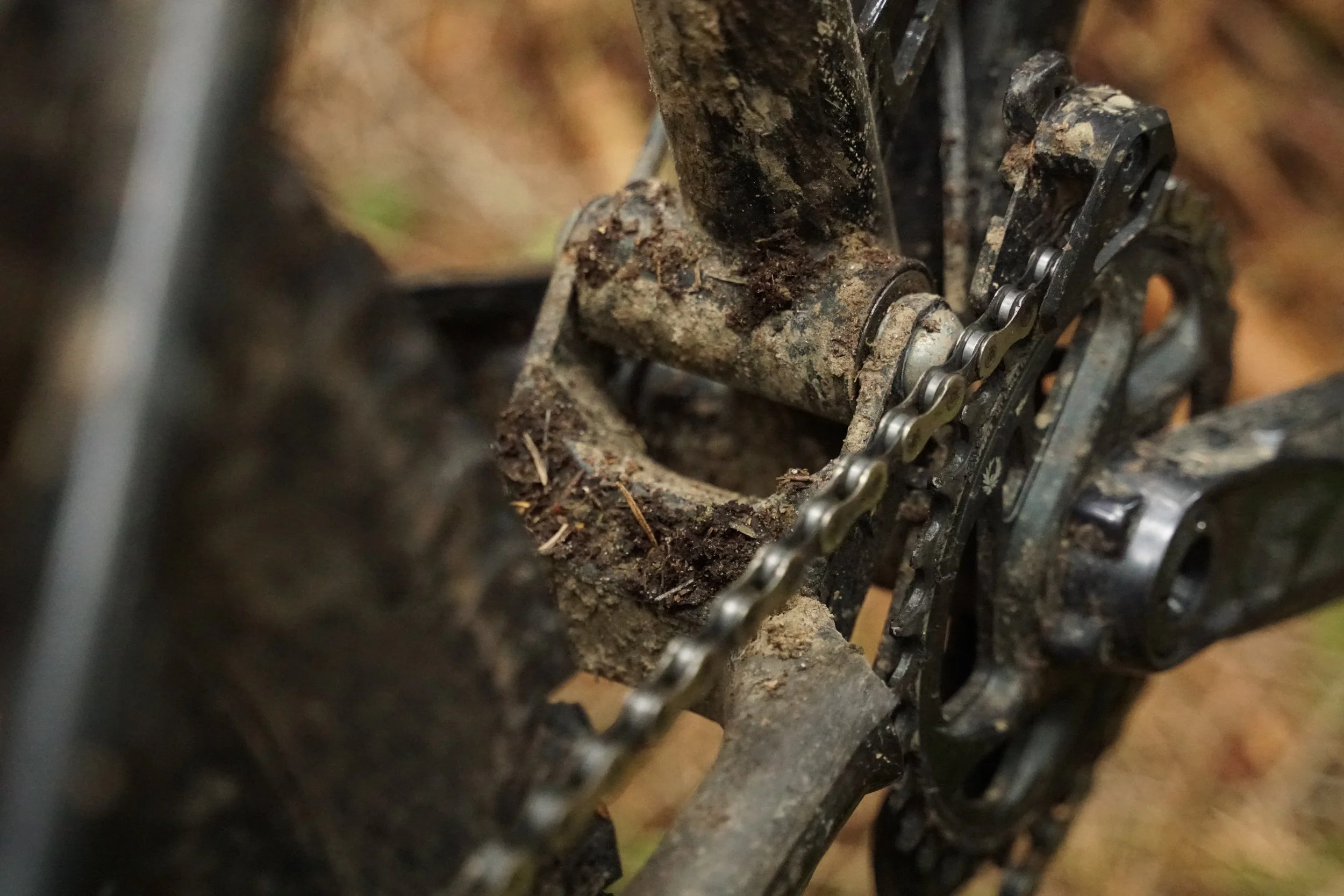

73mm BSA threaded bottom bracket
148x12 rear spacing. Clearance for 27.5x 2.6 tire.

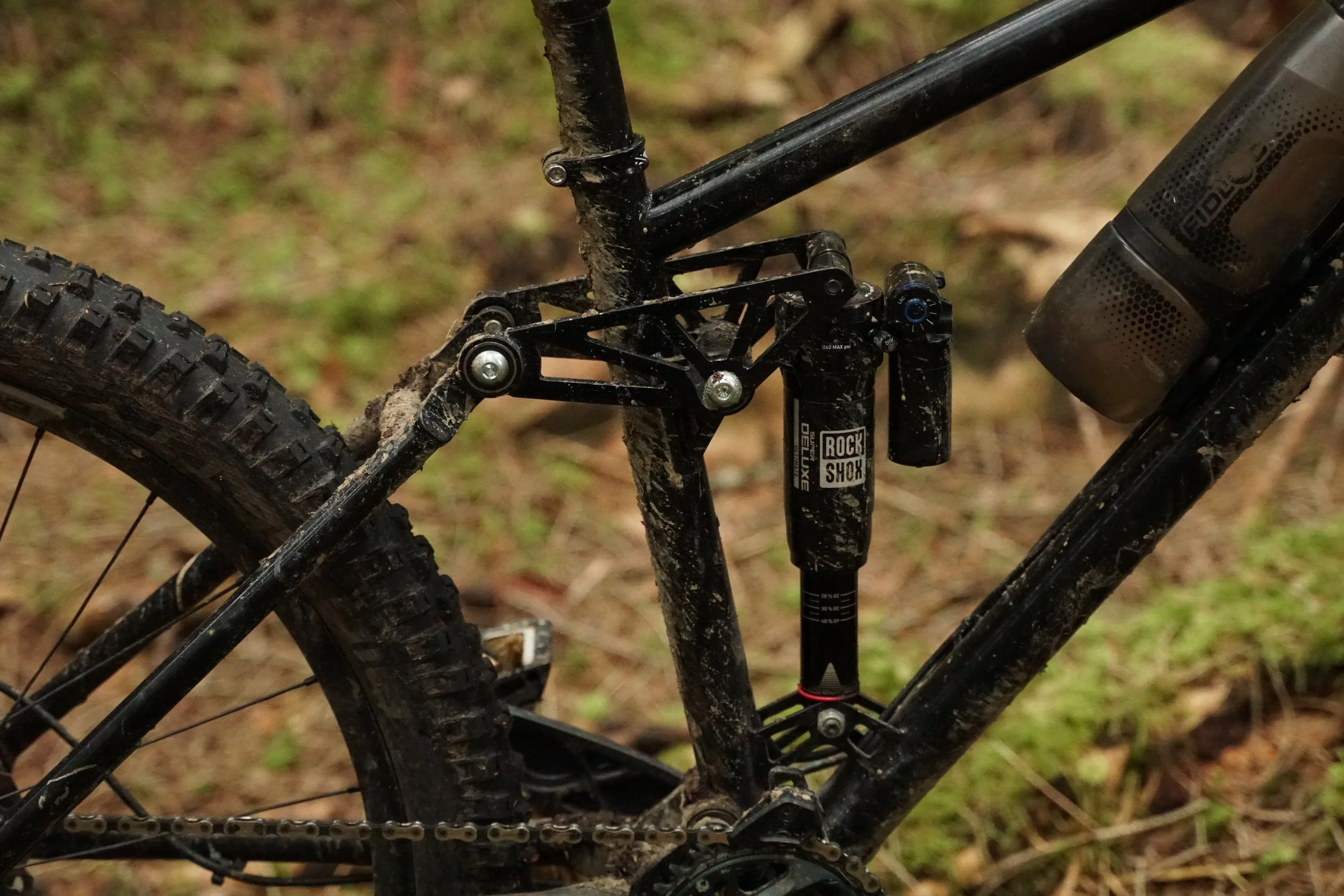

230x65 rear shock. Bushing mounts both ends.
Post mount 180mm brake mount. (photos show ISO).
31.6 seat post, 34.9/35mm seat clamp.

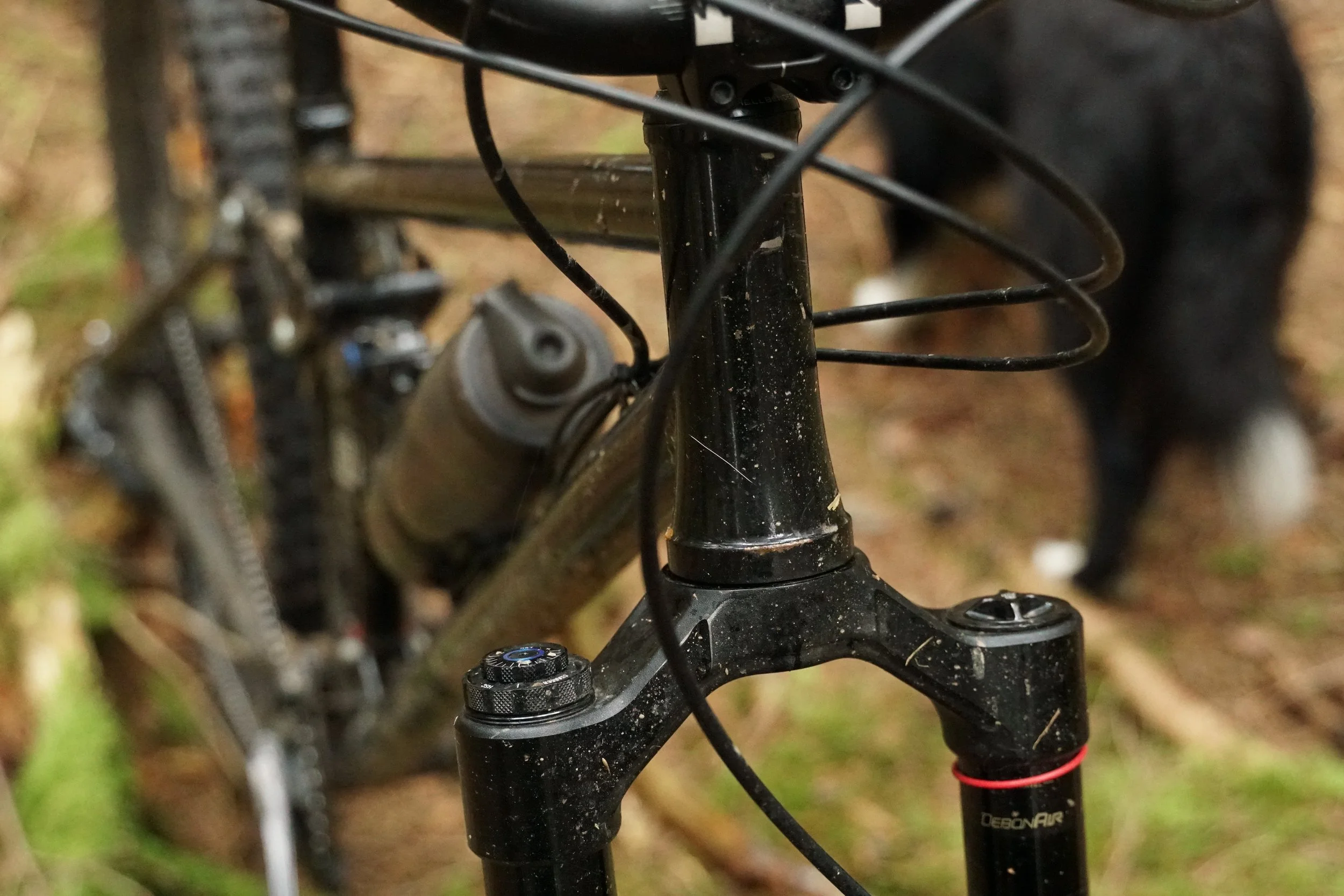

IS42/52 direct fit headset.

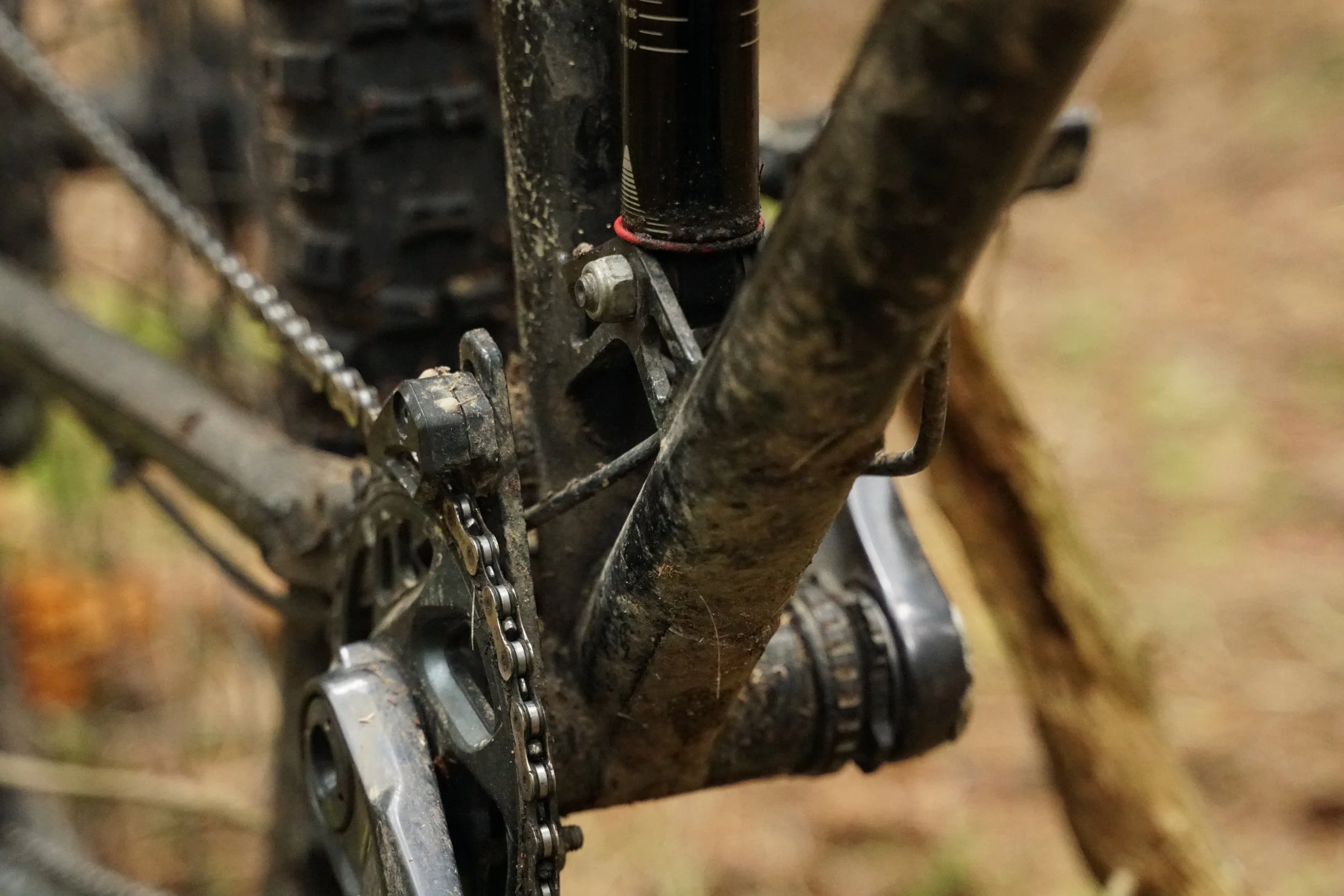

ISCG 05 chain guide mounts
-

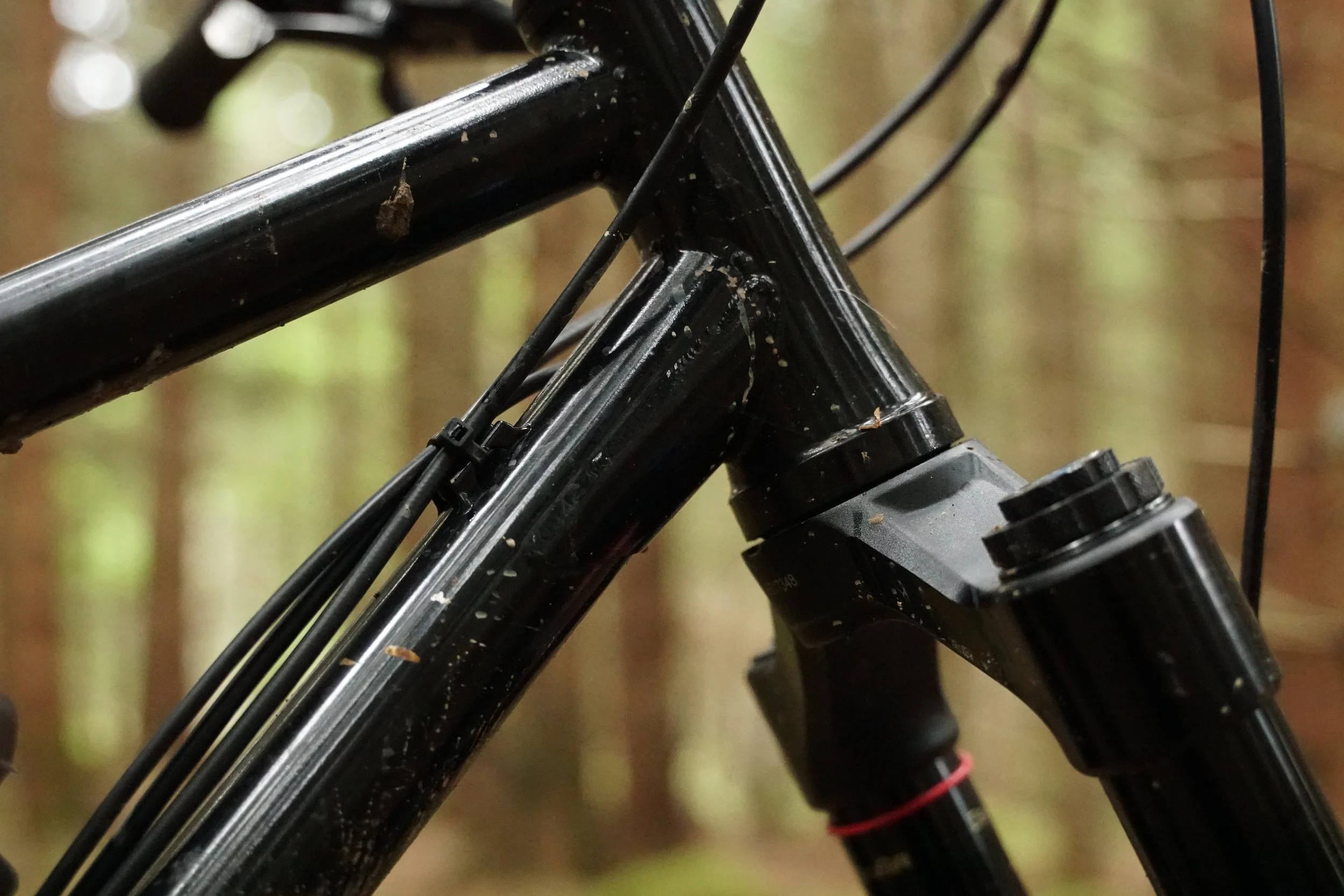

A mix of straight guage 4130 or Docol R8 tubing, with double butted options from Dedacciai on down and top tube. Machined head tube to fit IS42/52 bearing directly.
Ø38.1 downtube, Ø32 top tube, Ø35 seat tube, Ø22.2 chainstays, and Ø19 seatstays.
-

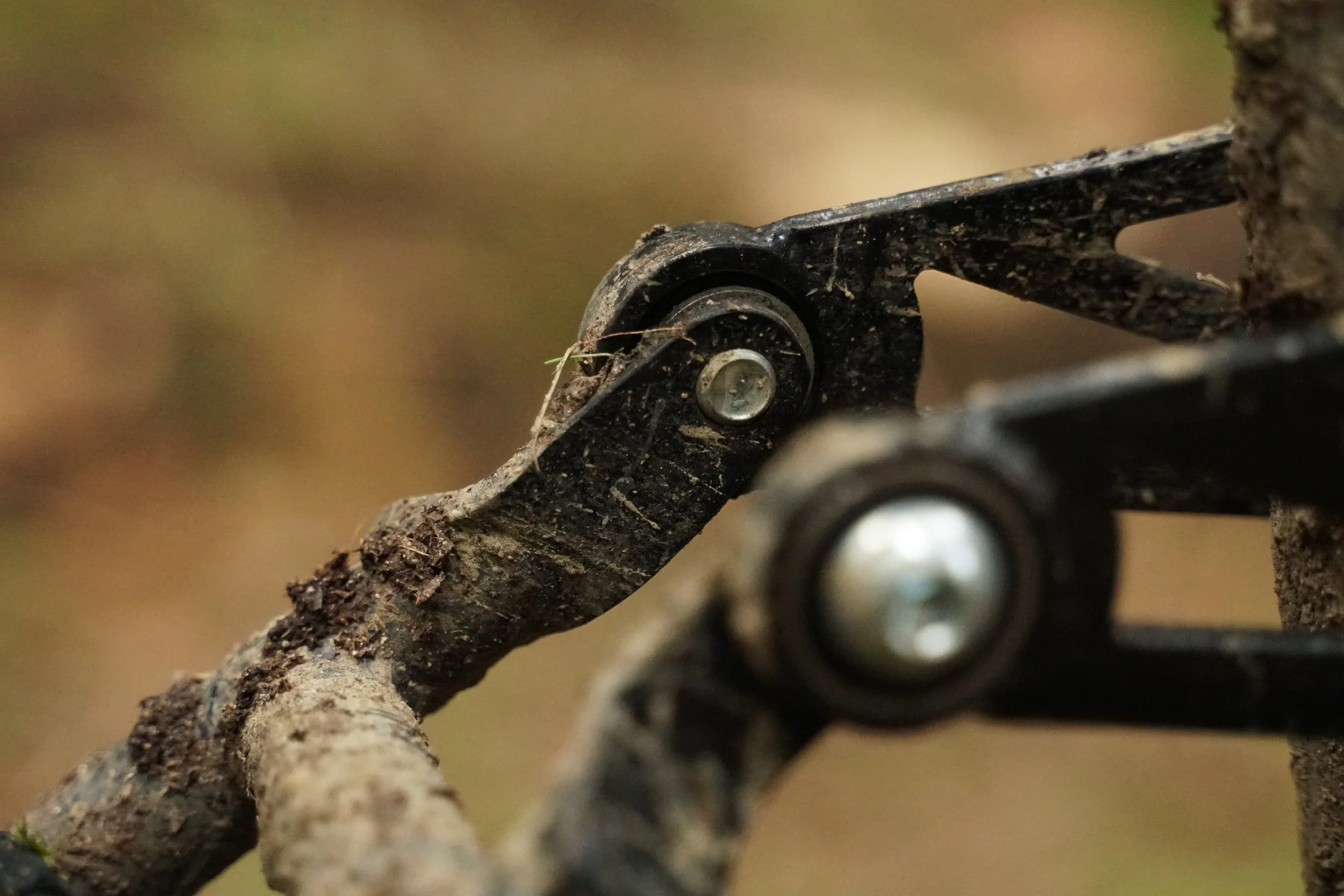

All fasteners are M10 - ISO 7380 (button head). Machined and threaded bearing spacers on front triangle pivot points, threaded plate on rear triangle. 6001-2RS(4x) and RS6000-2RS (4x) ball bearings with ISO 7089 washer.
-
Completely external cable routing.
Proprietary bolted on derailleur hanger in steel, can be bent and straightened numerous times, also with simple tools
-
Frames will be powder coated with sticker decals on top.

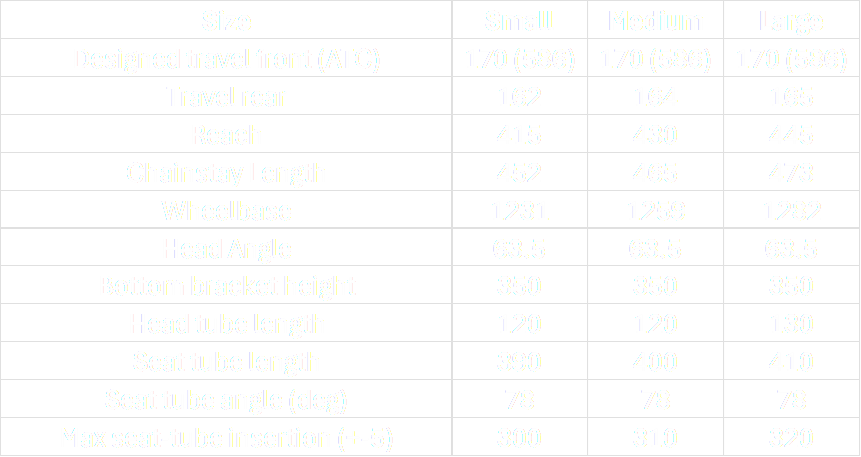

Geometry
Sizing
Rider height* - Size:
165-170 - Small
170-180 - Medium
180-190 - Large
Skog’s geometry differs significantly from other bike manufacturers and likely requires a deviation from what otherwise is recommended sizing wise. This difference is both accounted for and to suit a desired riding function, and will also only perform as intended with the right size of a few key components: stem length and bar height, width and sweep. In the future, an option for custom geometry following a rider specific analysis will be available.
See more about Skog’s geometry.
Frame price (without shock): 30 000 NOK inkl. mva.
Currently only available for purchase in the Nordic countries.
Current delivery time approx March/April 2025.
Complete builds with customizable spec available
Submit this form to purchase a bike.
Further details of delivery time, build specifications and price and/or bundled items will be done by email as response to this form.
